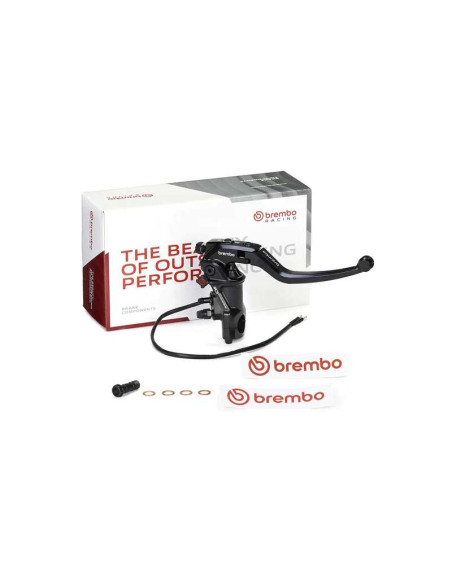

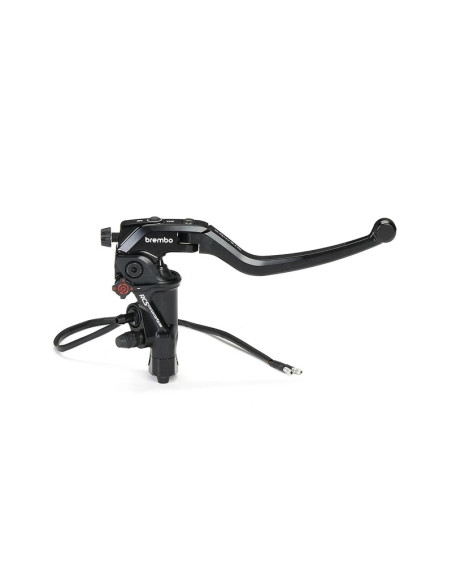

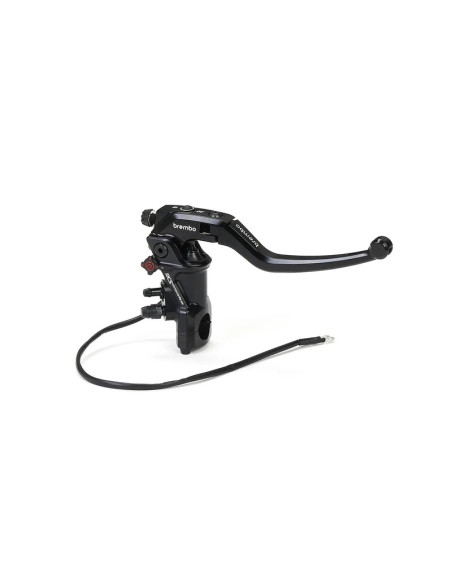

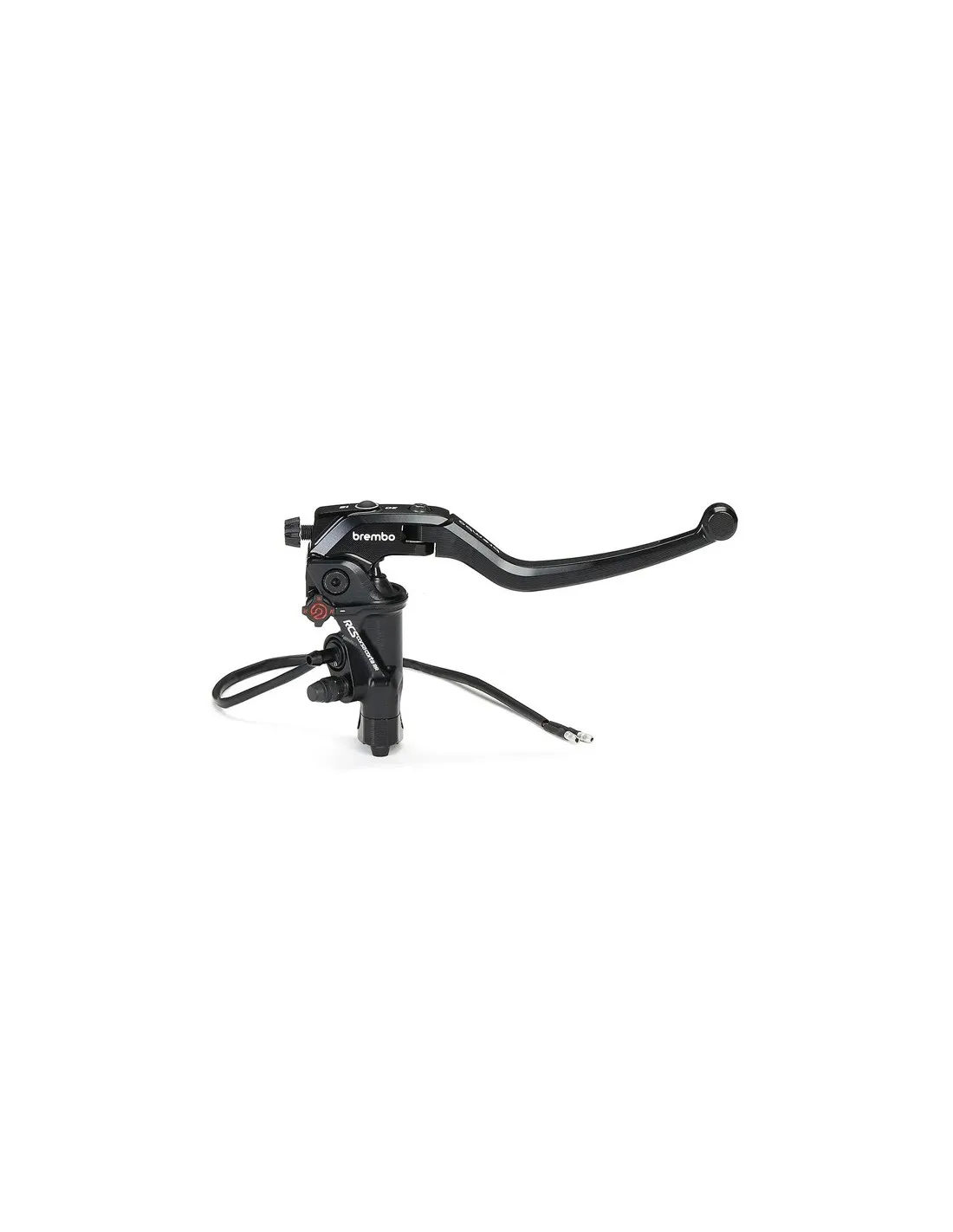

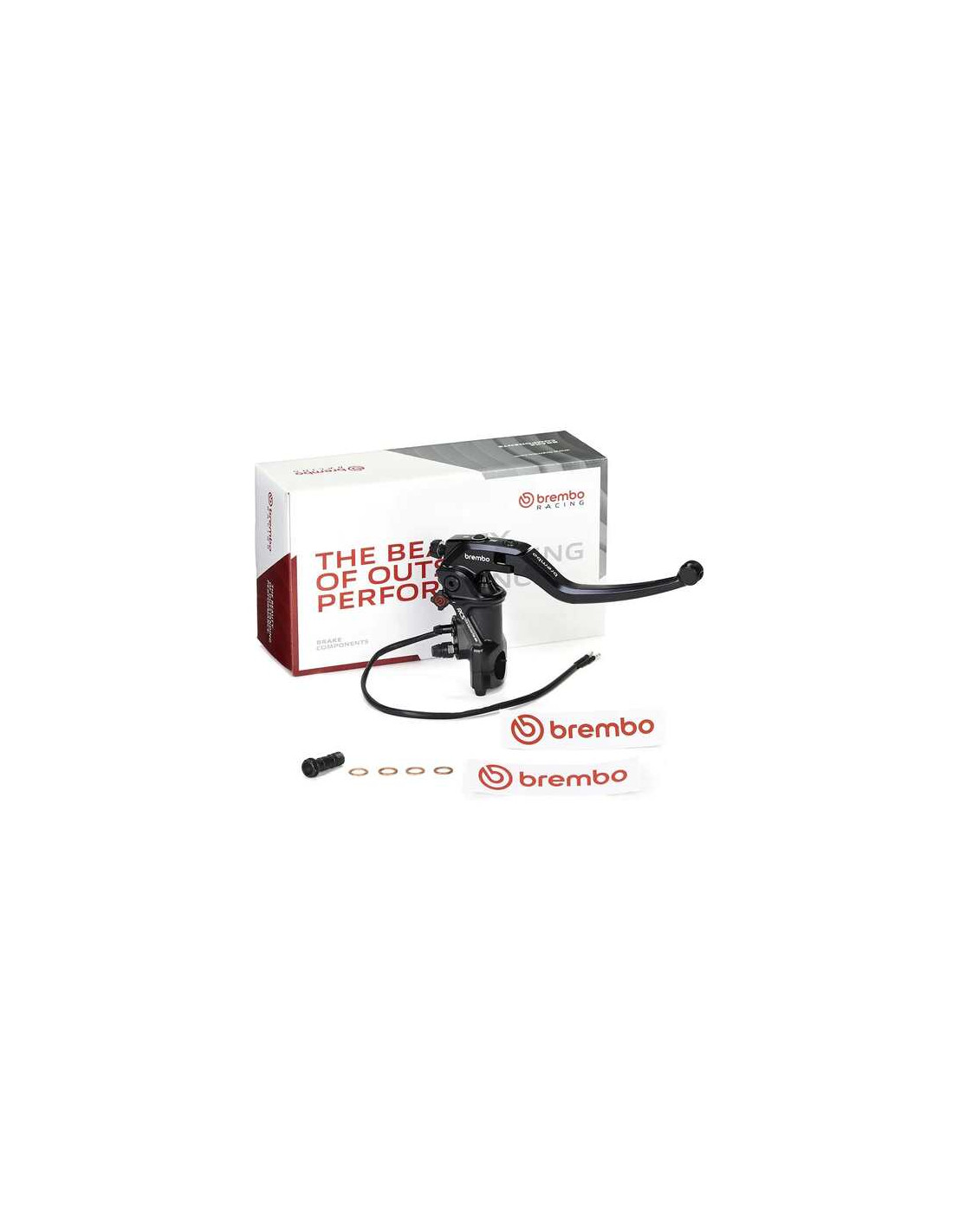

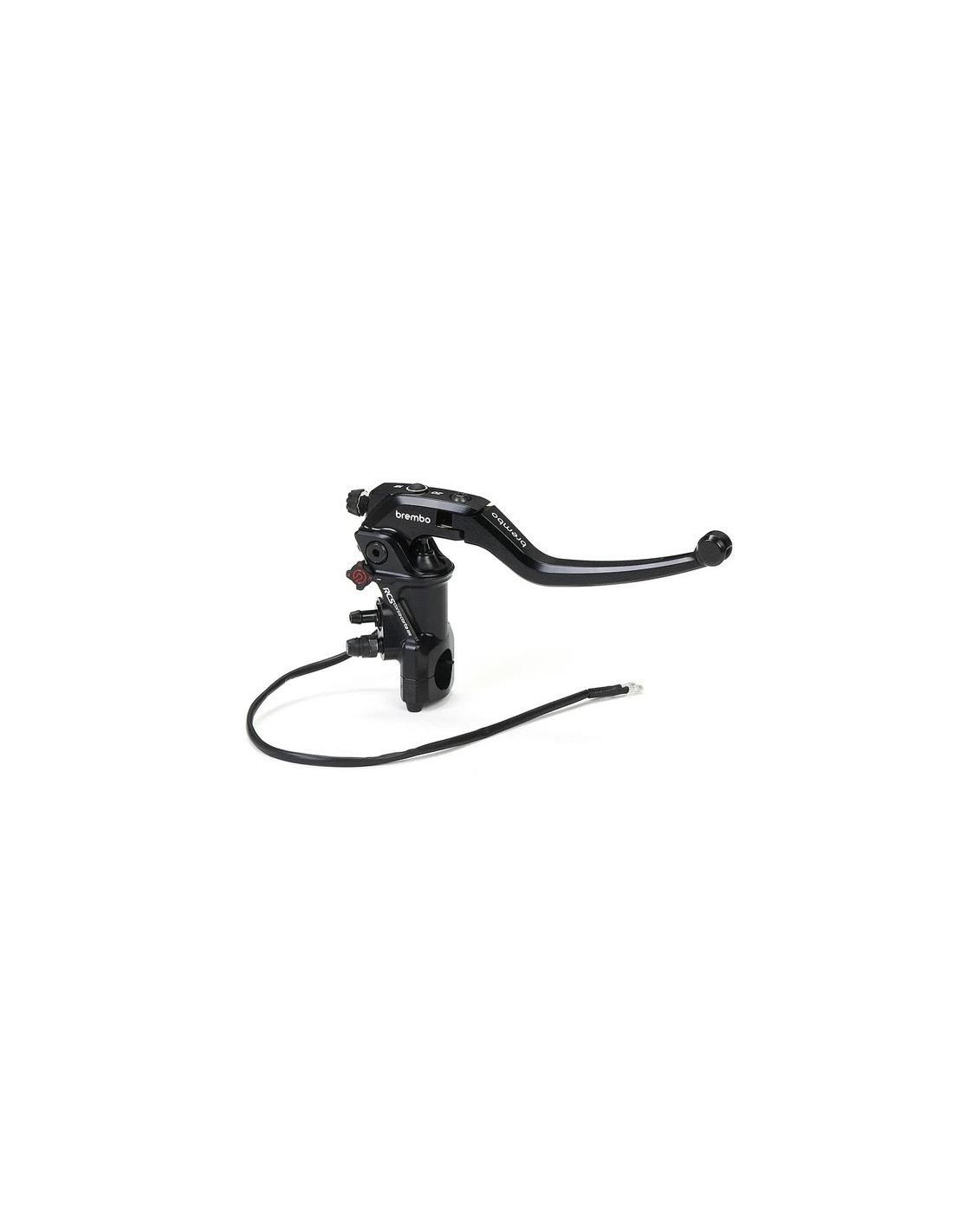

Master cylinder Brembo UPGRADE 19RCS Corsa Corta RR

The Brembo Racing RCS Corsa Corta RR master cylinder features a fully CNC-machined housing and a brake lever that resembles the master cylinders used in MotoGP and SBK. Like the standard version, it offers the possibility of calibrating the free travel in three positions (RSN) in order to obtain the maximum brake bite sensation according to this diagram: In position R "Race", the free travel is minimized, the lever becomes more responsive; in position S "Sport", the free travel is in an intermediate position, as is the lever feel; in position N "Normal", the free travel is greater, so there will be a wider modulation and a softer brake bite. The free travel adjustment is complemented by two other adjustment options: the adjustment of the lever distance from the handlebar and the RCS (Ratio Click System), which allows the lever distance to be changed between two different positions: 18 mm for maximum modulation and 2 mm for maximum response of the braking system.

• Variable lever distance and adjustable idle stroke
• Compatible with ABS system
• Bleed screw tightening torque: 12÷16 Nm
• Not suitable for cruise control
• Piston diameter: 19 mm
• Spacing: 18-2 mm
